Brand: TYSTVideo

Place of Origin: china

Article No:

Power supply mode: TY-1400

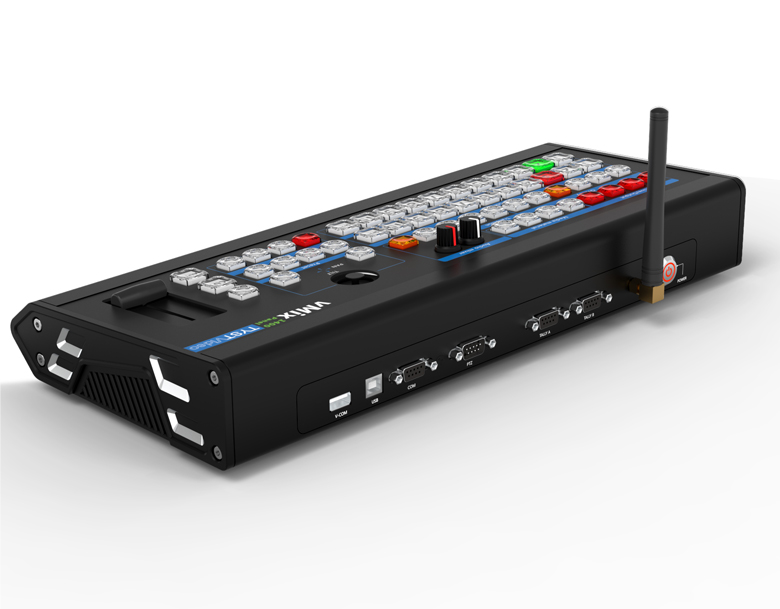

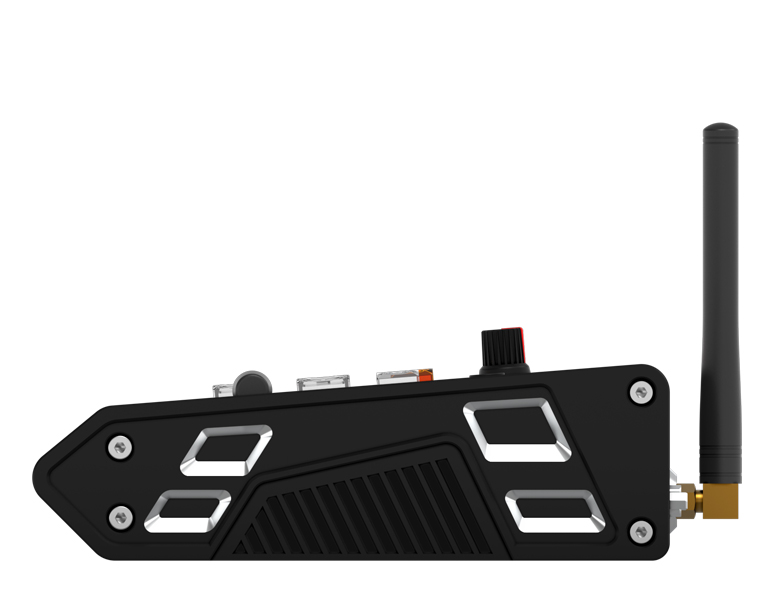

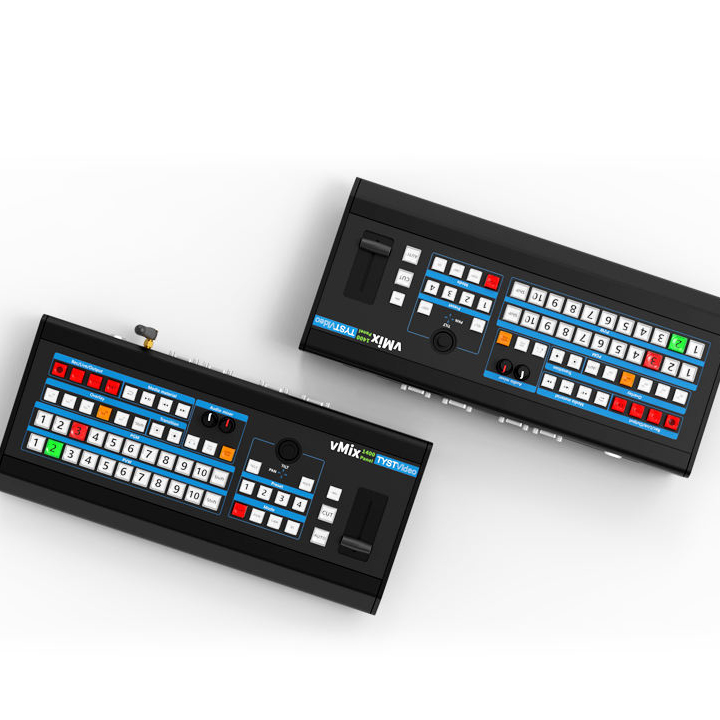

Tystvideo 20-Channel vMix Video Switcher Mixer for Live Streaming Multi Camera Video Switcher with WProduct details
Specification
item
value
Private Mold
Yes
Place of Origin
China

Beijing
Brand Name
TYSTVideo
Model Number
TY-1400
Video Channel No.
20
Output
USB
PTZ Control
Supported
Type
Live Broadcasting Equipment
Application
Professional Broadcast
Audio Control Mode
2-way
Control Protocol
485
MIDI Protocol
Supported
Wireless Tally Light
Supported
Supported Platform
vMix

Product Introduction

1. The switcher panel supports 1 group of 10-channel or 2 groups of 5-channel PGM downstream key settings, which can be used for station logo, subtitles, clock picture-in-picture and other functions during live broadcast.
2. Provide 20 channels of high-quality pressing crystal buttons, which can switch between PGM and PVW screen guides in real time.
3. Equipped with a special PTZ joystick, which can be adapted to the whole series of live broadcast directors of TYSTVideo, to achieve the push-pull, pan-tilt and rocker effects of the PTZ camera and the virtual scene camera.
4. Supports the all-in-one machine to achieve fade in and fade out, flying window, sliding image, push-pull and Stinger custom animation transition.
5. Support one-key recording, screen, live broadcast and one-key FTB key black protection output.
6. Support 20 channels of red and green two-color wireless tally output to realize tally light prompting relative to the camera position. (Note: Wireless tally light is an optional product.)
7. Provides 9Pin 485 PTZ control protocol, supports up to 20 wired/wireless PTZ camera preset positions, camera position pan and aperture zoom.
8. Provide 1 USB interface, provide MIDI protocol transmission and switcher panel power supply.
9. Supports 2-way audio control knob, which can control PGM and PVW audio, and can also customize settings as needed.
